North Sign

Draw true north sign.

Icon

Command

Menu

Toolbar

TK_SURVEYNORTHSIGN

Toolkit

Survey

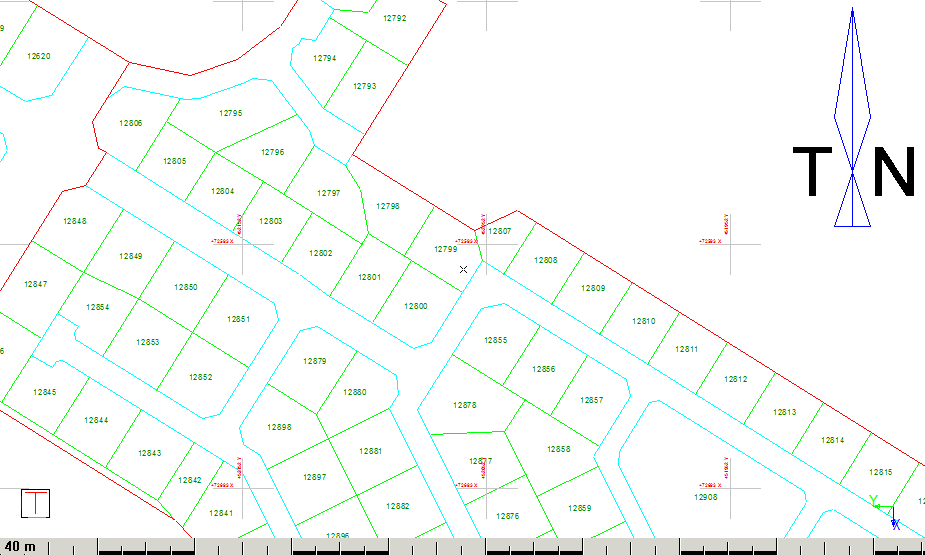

This function draws a north sign with a bearing of 0 degrees.

Procedure

The drawing must be in Surveyor mode before you begin. If not, the following message displays and you exit the function.



If the drawing is not in surveyor mode change the coordinate system in Drawing Settings.

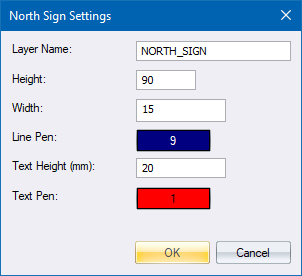

  1. The North Sign Settings display.

  1. Set the parameters you require and click OK.

  2. You are prompted to:

Indicate position of north sign

  1. The north sign is inserted at the indicated position.
