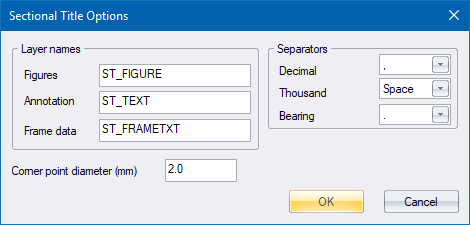

Option

Description

Layer Names

Figures

Specify a layer name for the figures.

Annotation

Specify a layer name for the annotations on the plan.

Frame data

Specify a layer name for the frame data on the plan.

Corner point diameter

Enter the diameter for the corner point beacon circles in mm on paper.

Separators

Specify the character to be used for the decimal point, the thousands position, and for building up a degree, minutes and seconds bearing value.
