Steel Sections

Draw structural steel sections.

Icon

Command

Menu

Toolbar

TK_STRUCTURALSECTIONS

Toolkit

Structural

This function allows you to draw the profiles of structural steel members. The following sections are supported:

Hot Rolled



I Sections




Parallel

Tapered

H Sections




Standard

Piles

Channel Sections




DIN Taper flange

BS Taper flange

SA Parallel flange

Angle Sections




Equal

Unequal

Cold Rolled



Angle Sections




Equal angle

Unequal angle

Lipped channel

Channel Sections




Standard

Lipped channel

Zeds




Equal lipped

Unequal lipped

Top Hats



Procedure

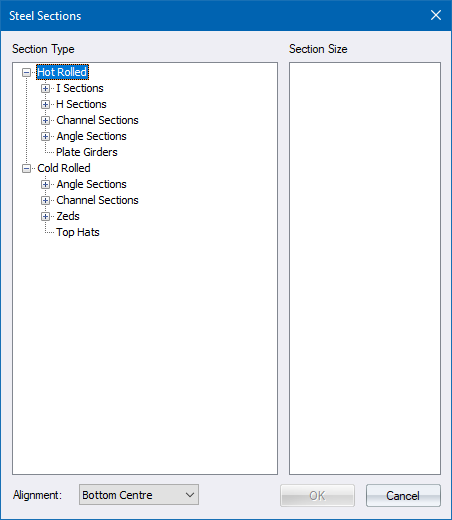

  1. A list of available sections displays.

  1. Select the type of section you want to draw. In this instance you select a Parallel I section.

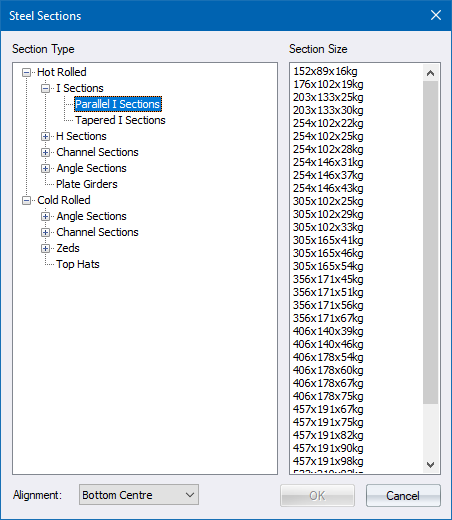

  2. A list of available sizes displays.

  1. Select a suitable size and click OK.

  2. You are prompted to:

Indicate position of steel section

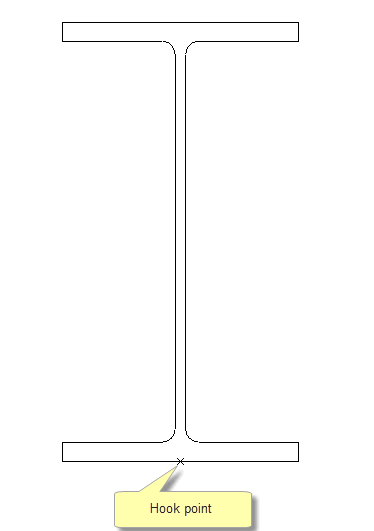

  1. Click on the position of the hook point of the section.

  1. The section is drawn in the current line style and pen.

  2. Specify a rotation using the following options:

  1. Press [Enter] when you've finished.
