Option

Description

Grid Appearance

Grid line style

The line style for the grid centrelines.

Grid pen

The pen for the grid centrelines.

Text Height

The text height of the grid labels.

Text Pen

The text pen of the grid labels.

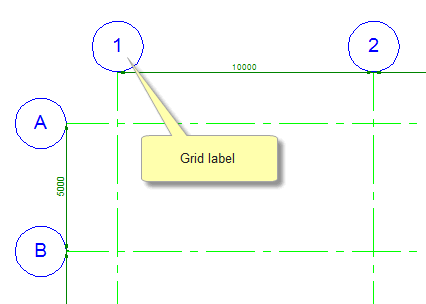

Layer

The layer for the grid.

Grid Spacing

X

Enter the distance between grid lines in the horizontal direction in drawing units. The following defines a grid of 10000, 10000, 6000 and 6000mm.

Y

Enter the distance between grid lines in the vertical direction in drawing units. The following defines a grid of 5000 and 10000mm.

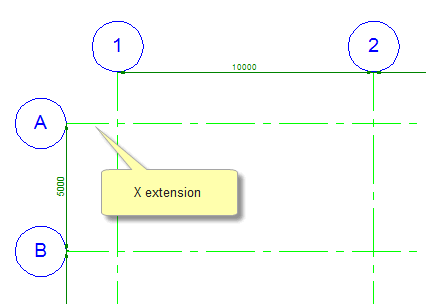

X extension

The horizontal distance between the grid and the dimensions and grid label in drawing units.

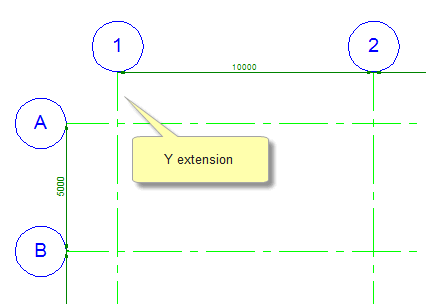

Y extension

The vertical distance between the grid and the dimensions and grid label in drawing units.
