Option

Description

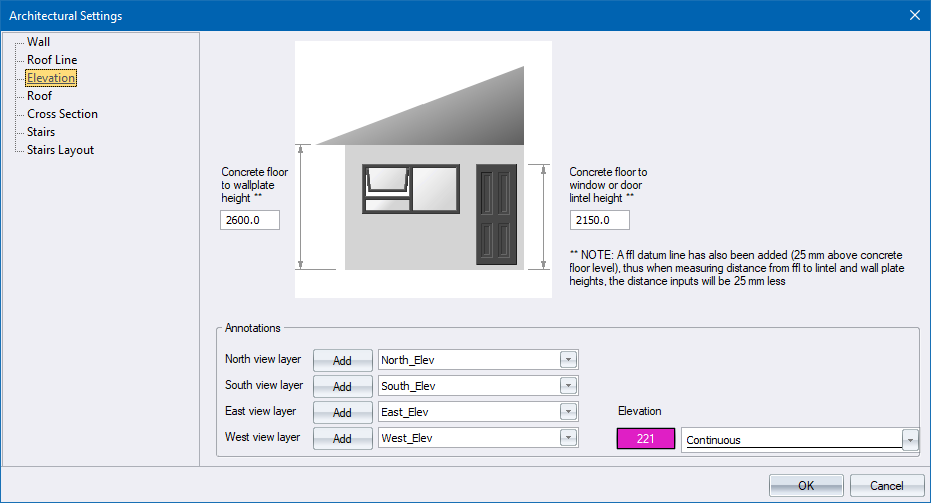

Concrete floor to wallplate height

Specify the height from the concrete floor to the wall plate.

Concrete floor to window or door lintol height

Specify the height to the top of the windows and doors.

Annotations

North view layer

Select a layer for the north elevation view from the list, or click Add to create a new layer.

South view layer

Select a layer for the south elevation view from the list, or click Add to create a new layer.

East view layer

Select a layer for the east elevation view from the list, or click Add to create a new layer.

West view layer

Select a layer for the west elevation view from the list, or click Add to create a new layer.

Elevation

Pen button

Select the pen to draw the elevations.

Line style list

Select a line style for the elevations.
