Sheet 1

Generate Sheet 1.

Icon

Command

Menu

Toolbar

TK_SGSECTIONGENS1

Toolkit

Survey Diagrams

This function allows you to generate Sheet 1 of the Sectional Title plans.

Procedure

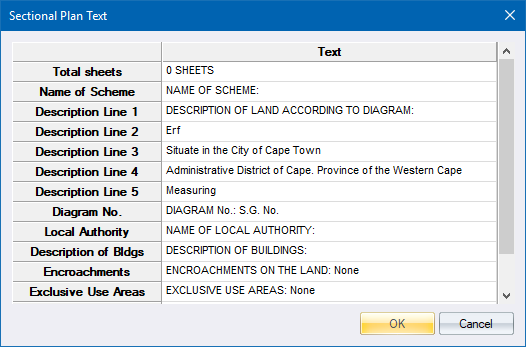

  1. The Sectional Plan Text options display.

  1. Make the necessary changes and click OK to proceed.

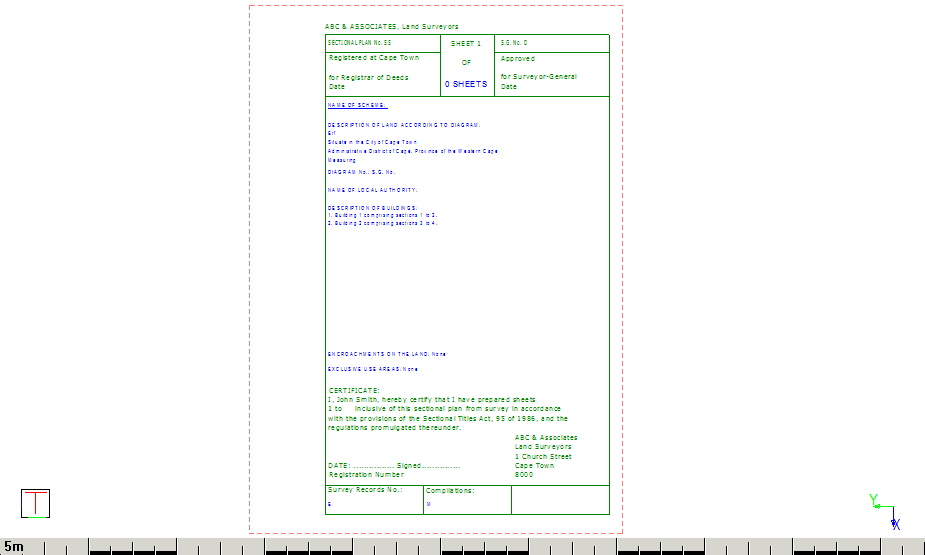

  2. The Sheet 1 drawing is created in a separate window.
