Floor Plan

Generate a floor plan.

This function allows you to generate a floor plan of the traced section. Before you can generate a floor plan, you need to create one or more traced sections using the Trace Section option.

Procedure

1. The program asks which sections to plot based on data in the Section Manager.

2. Select a section and click OK to proceed.

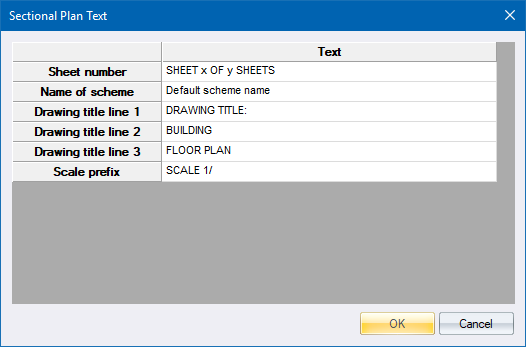

3. A new drawing is created and the Sectional Plan text options display for the floor plan.

4. Make the necessary changes and click OK to proceed.

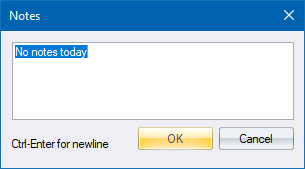

5. You are asked to add notes.

6. Add the necessary notes and click OK to proceed.

7. You are now prompted to indicate the centre position of the floor plan figure.

Indicate position for figure

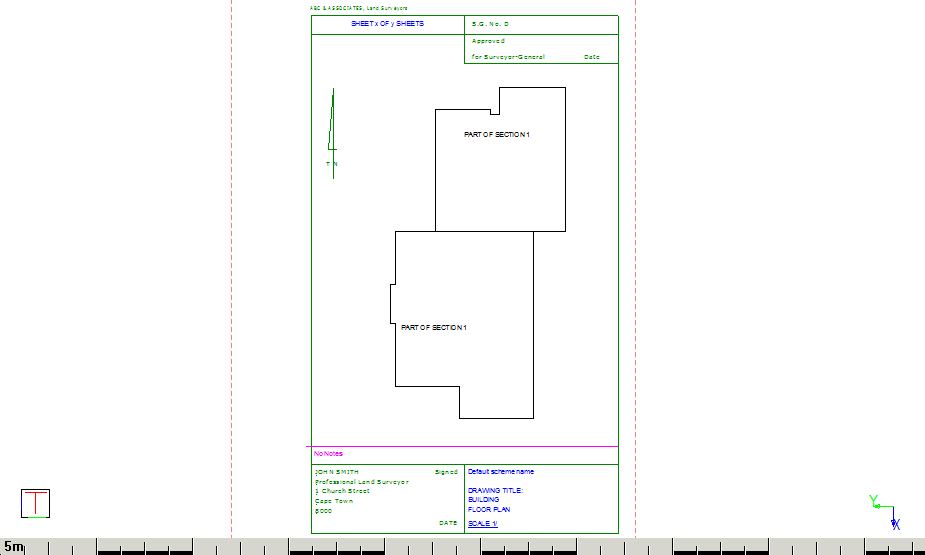

8. Thereafter, the floor plan is created.
