Numbering and Area Table

Add numbers and/or a area table.

This function allows you to add numbers to an indicated erven, and optionally calculate the areas of the erven and place these values in a table.

Procedure

1. The Numbering Settings display.

2. Select the options you require and click OK to proceed.

3. You are prompted to:

Position top left corner for table

4. Indicate a suitable position for the top left corner of the area table.

5. You are asked:

• Click Yes to place the numbers horizontally.

• Click No to have the numbers rotated parallel to the nearest line.

6. You are prompted to:

Indicate to be numbered close to line (Spacebar to exit)

7. Click inside a close to a boundary line.

8. You are prompted to:

9. Type in a suitable number and press [Enter].

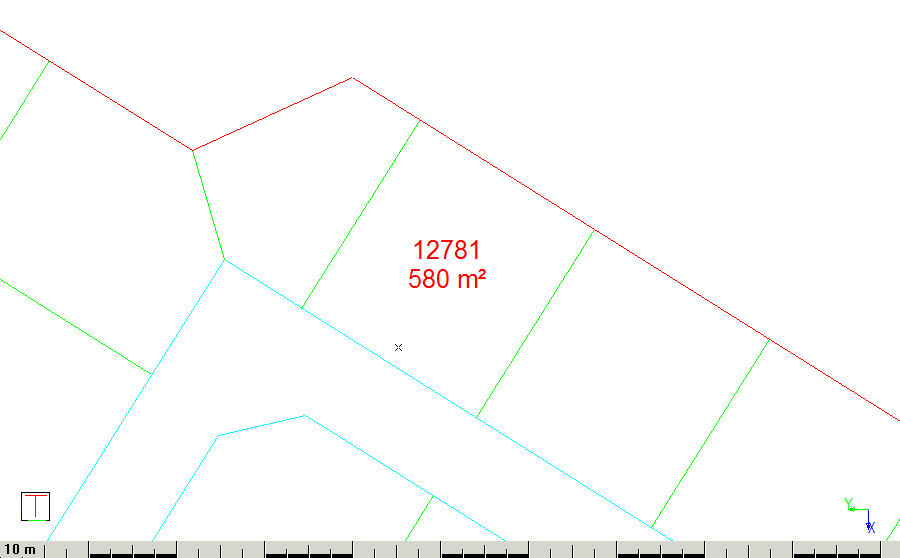

10. The is numbered.

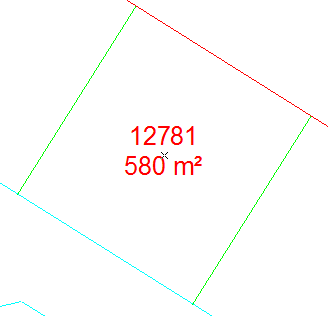

11. If you had checked the Write the area in the option, the calculated area is written below the number.

12. You are prompted to:

Indicate to be numbered close to line (Spacebar to exit)

13. Indicate all the additional erven to be numbered. The number is automatically incremented.

14. Press [Spacebar] or [Esc] to end the function.

15. The area table is updated, as shown below
