Draw Centrelines

Draw two intersecting lines ("+" Lines).

This function allows you to draw two perpendicular lines of variable length.

Procedure

1. You are prompted to:

Select a position for the centrelines (Esc to exit)

2. Click on the intersection point of the centrelines.

3. You are prompted to:

4. Type in a suitable value, and the press [Enter] or click Enter .

5. You are prompted to:

6. Type in a suitable value and press [Enter] or click Enter .

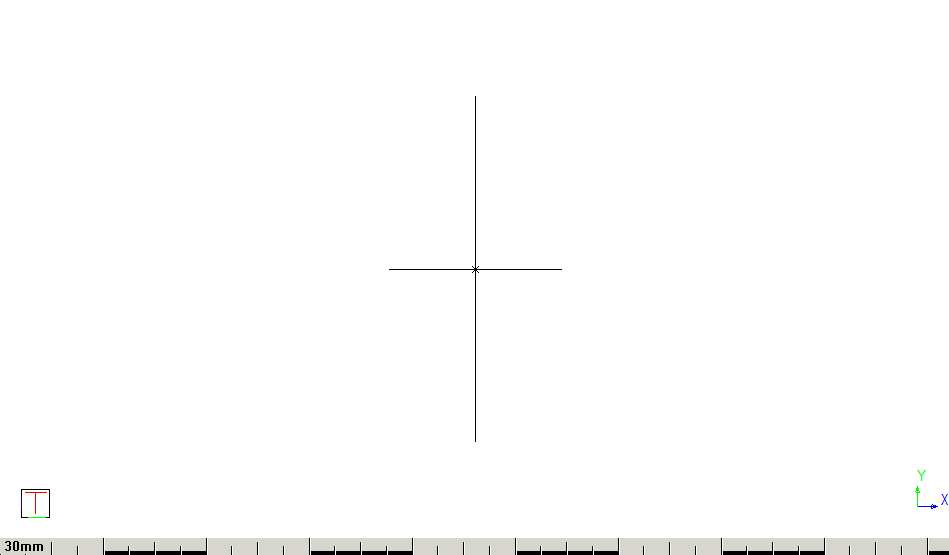

7.  The centrelines are drawn on the current layer using the current pen and line style.
